Spring-Cloud-Gateway 源码解析 —— 处理器 (3.1) 之 RoutePredicateFactory 路由谓语工厂

摘要: 原创出处 http://www.iocoder.cn/Spring-Cloud-Gateway/handler-route-predicate-factory/ 「芋道源码」欢迎转载,保留摘要,谢谢!

本文主要基于 Spring-Cloud-Gateway 2.0.X M4


1. 概述

本文主要分享 RoutePredicateFactory 路由谓语工厂

RoutePredicateFactory 涉及到的类在 org.springframework.cloud.gateway.handler.predicate 包下,如下图 :

Spring Cloud Gateway 创建 Route 对象时,使用 RoutePredicateFactory 创建 Predicate 对象。Predicate 对象可以赋值给 Route.predicate 属性,用于匹配请求对应的 Route 。


推荐 Spring Cloud 书籍

推荐 Spring Cloud 视频

2. RoutePredicateFactory

org.springframework.cloud.gateway.handler.predicate.RoutePredicateFactory , 路由谓语工厂接口。代码如下 :

@FunctionalInterface
public interface RoutePredicateFactory extends ArgumentHints {

    String PATTERN_KEY = "pattern";

    Predicate<ServerWebExchange> apply(Tuple args);

    default String name() {
        return NameUtils.normalizePredicateName(getClass());
    }

}

RoutePredicateFactory 实现类如下图 :

下面我们一个一个 RoutePredicateFactory 实现类理解。代码比较多,实际也比较简单。

另外,org.springframework.cloud.gateway.handler.predicate.RoutePredicates ,RoutePredicates 工厂,其调用 RoutePredicateFactory 接口的实现类,创建各种 Predicate 。

3. AfterRoutePredicateFactory

  • Route 匹配 :请求时间满足在配置时间之后
  • 配置 :
    spring:
      cloud:
        gateway:
          routes:
          # =====================================
          - id: after_route
            uri: http://example.org
            predicates:
            - After=2017-01-20T17:42:47.789-07:00[America/Denver]
      1: public class AfterRoutePredicateFactory implements RoutePredicateFactory {
      2:
      3:    public static final String DATETIME_KEY = "datetime";
      4:
      5:    @Override
      6:    public List<String> argNames() {
      7:        return Collections.singletonList(DATETIME_KEY);
      8:    }
      9:
     10:    @Override
     11:    public Predicate<ServerWebExchange> apply(Tuple args) {
     12:        Object value = args.getValue(DATETIME_KEY);
     13:        final ZonedDateTime dateTime = BetweenRoutePredicateFactory.getZonedDateTime(value);
     14:
     15:        return exchange -> {
     16:            final ZonedDateTime now = ZonedDateTime.now();
     17:            return now.isAfter(dateTime);
     18:        };
     19:    }
     20:
     21: }
* Tulpe 参数 :`datetime` 。
* 第 13 行 :调用 `BetweenRoutePredicateFactory#getZonedDateTime(value)` 方法,解析配置的时间值,在 [「5. BetweenRoutePredicateFactory」](#) 详细解析。

4. BeforeRoutePredicateFactory

  • Route 匹配 :请求时间满足在配置时间之前
  • RoutePredicates 方法 :#before(ZonedDateTime)
  • 配置 :
    spring:
      cloud:
        gateway:
          routes:
          # =====================================
          - id: before_route
            uri: http://example.org
            predicates:
            - Before=2017-01-20T17:42:47.789-07:00[America/Denver]
  • 代码 :
      1: public class BeforeRoutePredicateFactory implements RoutePredicateFactory {
      2:
      3:    public static final String DATETIME_KEY = "datetime";
      4:
      5:    @Override
      6:    public List<String> argNames() {
      7:        return Collections.singletonList(DATETIME_KEY);
      8:    }
      9:
     10:    @Override
     11:    public Predicate<ServerWebExchange> apply(Tuple args) {
     12:        Object value = args.getValue(DATETIME_KEY);
     13:        final ZonedDateTime dateTime = BetweenRoutePredicateFactory.getZonedDateTime(value);
     14:
     15:        return exchange -> {
     16:            final ZonedDateTime now = ZonedDateTime.now();
     17:            return now.isBefore(dateTime);
     18:        };
     19:    }
     20:
     21: }
* Tulpe 参数 :`datetime` 。
* 第 13 行 :调用 `BetweenRoutePredicateFactory#getZonedDateTime(value)` 方法,解析配置的时间值,在 [「5. BetweenRoutePredicateFactory」](#) 详细解析。

5. BetweenRoutePredicateFactory

    spring:
      cloud:
        gateway:
          routes:
          # =====================================
          - id: between_route
            uri: http://example.org
            predicates:
            - Betweeen=2017-01-20T17:42:47.789-07:00[America/Denver], 2017-01-21T17:42:47.789-07:00[America/Denver]
  • 代码 :
      1: public class BetweenRoutePredicateFactory implements RoutePredicateFactory {
      2:
      3:    public static final String DATETIME1_KEY = "datetime1";
      4:    public static final String DATETIME2_KEY = "datetime2";
      5:
      6:    @Override
      7:    public Predicate<ServerWebExchange> apply(Tuple args) {
      8:        //TODO: is ZonedDateTime the right thing to use?
      9:        final ZonedDateTime dateTime1 = getZonedDateTime(args.getValue(DATETIME1_KEY));
     10:        final ZonedDateTime dateTime2 = getZonedDateTime(args.getValue(DATETIME2_KEY));
     11:        Assert.isTrue(dateTime1.isBefore(dateTime2), args.getValue(DATETIME1_KEY) +
     12:                " must be before " + args.getValue(DATETIME2_KEY));
     13:
     14:        return exchange -> {
     15:            final ZonedDateTime now = ZonedDateTime.now();
     16:            return now.isAfter(dateTime1) && now.isBefore(dateTime2);
     17:        };
     18:    }
     19:
     20:    public static ZonedDateTime getZonedDateTime(Object value) {
     21:        ZonedDateTime dateTime;
     22:        if (value instanceof ZonedDateTime) {
     23:            dateTime = ZonedDateTime.class.cast(value);
     24:        } else {
     25:            dateTime = parseZonedDateTime(value.toString());
     26:        }
     27:        return dateTime;
     28:    }
     29:
     30:    public static ZonedDateTime parseZonedDateTime(String dateString) {
     31:        ZonedDateTime dateTime;
     32:        try {
     33:            // 数字
     34:            long epoch = Long.parseLong(dateString);
     35:            dateTime = Instant.ofEpochMilli(epoch).atOffset(ZoneOffset.ofTotalSeconds(0))
     36:                    .toZonedDateTime();
     37:        } catch (NumberFormatException e) {
     38:            // 字符串
     39:            // try ZonedDateTime instead
     40:            dateTime = ZonedDateTime.parse(dateString);
     41:        }
     42:
     43:        return dateTime;
     44:    }
     45:
     46: }
* Tulpe 参数 :`datetime1` / `datetime2` 。
* 第 20 至 44 行 :解析配置的时间值 。
    * 第 22 至 23 行 :当值类型为 **ZonedDateTime** 。主要使用 Java / Kotlin 配置 Route 时,例如 [`RoutePredicates#between(ZonedDateTime, ZonedDateTime)`](https://github.com/spring-cloud/spring-cloud-gateway/blob/9ffb0f18678460fda9b25c572c12f9054a62ca52/spring-cloud-gateway-core/src/main/java/org/springframework/cloud/gateway/handler/predicate/RoutePredicates.java#L48) 。
    * 第 33 至 36 行 :当值类型为 **Long** 。例如配置文件 `1511795602765`。
    * 当 38 至 41 行 :当值类型为 **String** 。例如配置文件里 `2017-01-20T17:42:47.789-07:00[America/Denver]` 。

6. CookieRoutePredicateFactory

  • Route 匹配 :请求指定 Cookie 正则匹配指定值
  • RoutePredicates 方法 :#cookie(String, String)
  • 配置 :
    spring:
      cloud:
        gateway:
          routes:
          # =====================================
          - id: cookie_route
            uri: http://example.org
            predicates:
            - Cookie=chocolate, ch.p
  • 代码 :
      1: public class CookieRoutePredicateFactory implements RoutePredicateFactory {
      2:
      3:    public static final String NAME_KEY = "name";
      4:    public static final String REGEXP_KEY = "regexp";
      5:
      6:    @Override
      7:    public List<String> argNames() {
      8:        return Arrays.asList(NAME_KEY, REGEXP_KEY);
      9:    }
     10:
     11:    @Override
     12:    public Predicate<ServerWebExchange> apply(Tuple args) {
     13:        String name = args.getString(NAME_KEY);
     14:        String regexp = args.getString(REGEXP_KEY);
     15:
     16:        return exchange -> {
     17:            List<HttpCookie> cookies = exchange.getRequest().getCookies().get(name);
     18:            for (HttpCookie cookie : cookies) {
     19:                // 正则匹配
     20:                if (cookie.getValue().matches(regexp)) {
     21:                    return true;
     22:                }
     23:            }
     24:            return false;
     25:        };
     26:    }
     27: }
* Tulpe 参数 :`name` / `regexp` 。
* 第 20 行 :指定 Cookie 正则匹配**指定值**。

7. HeaderRoutePredicateFactory

  • Route 匹配 :请求指定 Cookie 正则匹配指定值
  • RoutePredicates 方法 :#header(String, String)
  • 配置 :
    spring:
      cloud:
        gateway:
          routes:
          # =====================================
          - id: header_route
            uri: http://example.org
            predicates:
            - Header=X-Request-Id, \d+
  • 代码 :
      1: public class HeaderRoutePredicateFactory implements RoutePredicateFactory {
      2:
      3:    public static final String HEADER_KEY = "header";
      4:    public static final String REGEXP_KEY = "regexp";
      5:
      6:    @Override
      7:    public List<String> argNames() {
      8:        return Arrays.asList(HEADER_KEY, REGEXP_KEY);
      9:    }
     10:
     11:    @Override
     12:    public Predicate<ServerWebExchange> apply(Tuple args) {
     13:        String header = args.getString(HEADER_KEY);
     14:        String regexp = args.getString(REGEXP_KEY);
     15:
     16:        return exchange -> {
     17:            List<String> values = exchange.getRequest().getHeaders().get(header);
     18:            for (String value : values) {
     19:                // 正则匹配
     20:                if (value.matches(regexp)) {
     21:                    return true;
     22:                }
     23:            }
     24:            return false;
     25:        };
     26:    }
     27: }
* Tulpe 参数 :`header` / `regexp` 。
* 第 20 行 :指定 Header 正则匹配**指定值**。

8. HostRoutePredicateFactory

  • Route 匹配 :请求 Host 匹配指定值
  • RoutePredicates 方法 :#host(String)
  • 配置 :
    spring:
      cloud:
        gateway:
          routes:
          # =====================================
          - id: host_route
            uri: http://example.org
            predicates:
            - Host=**.somehost.org
  • 代码 :
      1: public class HostRoutePredicateFactory implements RoutePredicateFactory {
      2:
      3:    private PathMatcher pathMatcher = new AntPathMatcher(".");
      4:
      5:    public void setPathMatcher(PathMatcher pathMatcher) {
      6:        this.pathMatcher = pathMatcher;
      7:    }
      8:
      9:    @Override
     10:    public List<String> argNames() {
     11:        return Collections.singletonList(PATTERN_KEY);
     12:    }
     13:
     14:    @Override
     15:    public Predicate<ServerWebExchange> apply(Tuple args) {
     16:        String pattern = args.getString(PATTERN_KEY);
     17:
     18:        return exchange -> {
     19:            String host = exchange.getRequest().getHeaders().getFirst("Host");
     20:            // 匹配
     21:            return this.pathMatcher.match(pattern, host);
     22:        };
     23:    }
     24: }
* Tulpe 参数 :`pattern` 。
* `pathMatcher` 属性,路径匹配器,默认使用 `org.springframework.util.AntPathMatcher` 。通过 `#setPathMatcher(PathMatcher)` 方法,可以重新设置。
* 第 21 行 :请求**路径** 匹配**指定值**。

9. MethodRoutePredicateFactory

  • Route 匹配 :请求 Method 匹配指定值
  • RoutePredicates 方法 :#method(String)
  • 配置 :
    spring:
      cloud:
        gateway:
          routes:
          # =====================================
          - id: method_route
            uri: http://example.org
            predicates:
            - Method=GET
  • 代码 :
      1: public class MethodRoutePredicateFactory implements RoutePredicateFactory {
      2:
      3:    public static final String METHOD_KEY = "method";
      4:
      5:    @Override
      6:    public List<String> argNames() {
      7:        return Arrays.asList(METHOD_KEY);
      8:    }
      9:
     10:    @Override
     11:    public Predicate<ServerWebExchange> apply(Tuple args) {
     12:        String method = args.getString(METHOD_KEY);
     13:        return exchange -> {
     14:            HttpMethod requestMethod = exchange.getRequest().getMethod();
     15:            // 正则匹配
     16:            return requestMethod.matches(method);
     17:        };
     18:    }
     19: }
* Tulpe 参数 :`method` 。
* 第 16 行 :请求 **Method** 匹配**指定值**。

10. PathRoutePredicateFactory

  • Route 匹配 :请求 Path 匹配指定值
  • RoutePredicates 方法 :#path(String, String)
  • 配置 :
    spring:
      cloud:
        gateway:
          routes:
          # =====================================
          - id: host_route
            uri: http://example.org
            predicates:
            - Path=/foo/{segment}
  • 代码 :
      1: public class PathRoutePredicateFactory implements RoutePredicateFactory {
      2:
      3:    private PathPatternParser pathPatternParser = new PathPatternParser();
      4:
      5:    public void setPathPatternParser(PathPatternParser pathPatternParser) {
      6:        this.pathPatternParser = pathPatternParser;
      7:    }
      8:
      9:    @Override
     10:    public List<String> argNames() {
     11:        return Collections.singletonList(PATTERN_KEY);
     12:    }
     13:
     14:    @Override
     15:    public Predicate<ServerWebExchange> apply(Tuple args) {
     16:        // 解析 Path ,创建对应的 PathPattern
     17:        String unparsedPattern = args.getString(PATTERN_KEY);
     18:        PathPattern pattern;
     19:        synchronized (this.pathPatternParser) {
     20:            pattern = this.pathPatternParser.parse(unparsedPattern);
     21:        }
     22:
     23:        return exchange -> {
     24:            PathContainer path = parsePath(exchange.getRequest().getURI().getPath());
     25:
     26:            // 匹配
     27:            boolean match = pattern.matches(path);
     28:            traceMatch("Pattern", pattern.getPatternString(), path, match);
     29:            if (match) {

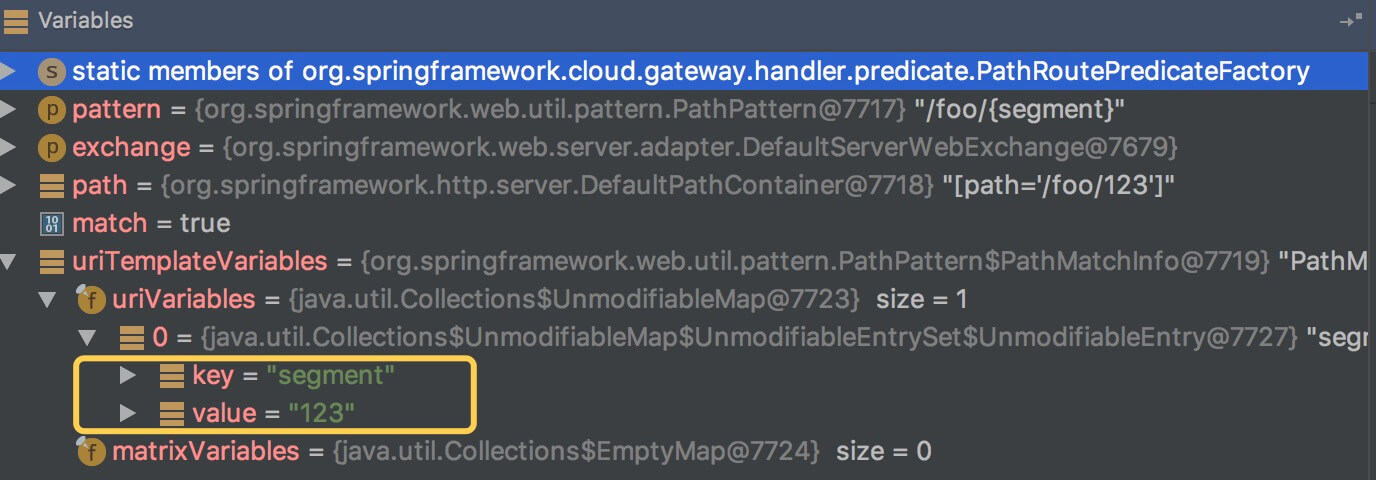

     30:                // 解析 路径参数,例如 path=/foo/123 <=> /foo/{segment}
     31:                PathMatchInfo uriTemplateVariables = pattern.matchAndExtract(path);
     32:                exchange.getAttributes().put(URI_TEMPLATE_VARIABLES_ATTRIBUTE, uriTemplateVariables);
     33:                return true;
     34:            }
     35:            else {
     36:                return false;
     37:            }
     38:        };
     39:    }
     40: }
* Tulpe 参数 :`pattern` 。
* `pathPatternParser` 属性,路径模式解析器。
* 第 17 至 21 行 :解析**配置**的 Path ,创建对应的 PathPattern 。考虑到解析过程中的**线程安全**,此处使用 `synchronized` 修饰符,详见 [`PathPatternParser#parse(String)`](https://github.com/spring-projects/spring-framework/blob/master/spring-web/src/main/java/org/springframework/web/util/pattern/PathPatternParser.java#L99) 方法的注释。
* 第 24 至 27 行 :解析**请求**的 Path ,匹配**配置**的 Path 。
* 第 30 至 32 行 :解析**路径参数**,设置到 `ServerWebExchange.attributes` 属性中,提供给后续的 GatewayFilter 使用。举个例子,当配置的 Path 为 `/foo/{segment}` ,请求的 Path 为 `/foo/123` ,在此处打断点,结果如下图 :![](http://www.iocoder.cn/images/Spring-Cloud-Gateway/2020_02_15/03.png)

    > FROM [《Spring Cloud Gateway》](https://github.com/spring-cloud/spring-cloud-gateway/blob/9ffb0f18678460fda9b25c572c12f9054a62ca52/docs/src/main/asciidoc/spring-cloud-gateway.adoc#path-route-predicate-factory)
    > This predicate extracts the URI template variables (like `segment` defined in the example above) as a map of names and values and places it in the `ServerWebExchange.getAttributes()` with a key defined in `PathRoutePredicate.URL_PREDICATE_VARS_ATTR`. Those values are then available for use by [GatewayFilter Factories](https://github.com/spring-cloud/spring-cloud-gateway/blob/9ffb0f18678460fda9b25c572c12f9054a62ca52/docs/src/main/asciidoc/spring-cloud-gateway.adoc#setpath-gatewayfilter-factory)

11. QueryRoutePredicateFactory

  • Route 匹配 :请求 QueryParam 匹配指定值
  • RoutePredicates 方法 :#query(String, String)
  • 配置 :
    spring:
      cloud:
        gateway:
          routes:
          # =====================================
          - id: query_route
            uri: http://example.org
            predicates:
            - Query=baz
            - Query=foo, ba.
  • 代码 :
      1: public class QueryRoutePredicateFactory implements RoutePredicateFactory {
      2:
      3:    public static final String PARAM_KEY = "param";
      4:    public static final String REGEXP_KEY = "regexp";
      5:
      6:    @Override
      7:    public List<String> argNames() {
      8:        return Arrays.asList(PARAM_KEY, REGEXP_KEY);
      9:    }
     10:
     11:    @Override
     12:    public boolean validateArgs() {
     13:        return false;
     14:    }
     15:
     16:    @Override
     17:    public Predicate<ServerWebExchange> apply(Tuple args) {
     18:        validateMin(1, args);
     19:        String param = args.getString(PARAM_KEY);
     20:
     21:        return exchange -> {
     22:            // 包含 参数
     23:            if (!args.hasFieldName(REGEXP_KEY)) {
     24:                // check existence of header
     25:                return exchange.getRequest().getQueryParams().containsKey(param);
     26:            }
     27:
     28:            // 正则匹配 参数
     29:            String regexp = args.getString(REGEXP_KEY);
     30:            List<String> values = exchange.getRequest().getQueryParams().get(param);
     31:            for (String value : values) {
     32:                if (value.matches(regexp)) {
     33:                    return true;
     34:                }
     35:            }
     36:            return false;
     37:        };
     38:    }
     39: }
* Tulpe 参数 :`param` ( 必填 ) / `regexp` ( 选填 ) 。
* 第 18 行 :调用 `#validateMin(...)` 方法,校验参数数量至少为 `1` ,即 `param` 非空 。
* 第 22 至 26 行 :当 `regexp` 为空时,校验 `param` 对应的 `QueryParam` 存在。
* 第 28 至 35 行 :当 `regexp` 非空时,请求 `param` 对应的 **QueryParam** 正则匹配**指定值**。
    * 当 `QueryParams` 为空时,会报空指针 **BUG** 。

12. RemoteAddrRoutePredicateFactory

  • Route 匹配 :请求来源 IP指定范围内
  • RoutePredicates 方法 :#remoteAddr(String...)
  • 配置 :
    spring:
      cloud:
        gateway:
          routes:
          # =====================================
          - id: remoteaddr_route
            uri: http://example.org
            predicates:
            - RemoteAddr=192.168.1.1/24
  • 代码 :
      1: public class RemoteAddrRoutePredicateFactory implements RoutePredicateFactory {
      2:
      3:    private static final Log log = LogFactory.getLog(RemoteAddrRoutePredicateFactory.class);
      4:
      5:    @Override
      6:    public Predicate<ServerWebExchange> apply(Tuple args) {
      7:        validate(1, args);
      8:
      9:        //
     10:        List<SubnetUtils> sources = new ArrayList<>();
     11:        if (args != null) {
     12:            for (Object arg : args.getValues()) {
     13:                addSource(sources, (String) arg);
     14:            }
     15:        }
     16:
     17:        return exchange -> {
     18:            InetSocketAddress remoteAddress = exchange.getRequest().getRemoteAddress();
     19:            if (remoteAddress != null) {
     20:                // 来源 IP
     21:                String hostAddress = remoteAddress.getAddress().getHostAddress();
     22:                String host = exchange.getRequest().getURI().getHost();
     23:                if (!hostAddress.equals(host)) {
     24:                    log.warn("Remote addresses didn't match " + hostAddress + " != " + host);
     25:                }
     26:
     27:                //
     28:                for (SubnetUtils source : sources) {
     29:                    if (source.getInfo().isInRange(hostAddress)) {
     30:                        return true;
     31:                    }
     32:                }
     33:            }
     34:
     35:            return false;
     36:        };
     37:    }
     38:
     39:    private void addSource(List<SubnetUtils> sources, String source) {
     40:        boolean inclusiveHostCount = false;
     41:        if (!source.contains("/")) { // no netmask, add default
     42:            source = source + "/32";
     43:        }
     44:        if (source.endsWith("/32")) {
     45:            //http://stackoverflow.com/questions/2942299/converting-cidr-address-to-subnet-mask-and-network-address#answer-6858429
     46:            inclusiveHostCount = true;
     47:        }
     48:        //TODO: howto support ipv6 as well?
     49:        SubnetUtils subnetUtils = new SubnetUtils(source);
     50:        subnetUtils.setInclusiveHostCount(inclusiveHostCount);
     51:        sources.add(subnetUtils);
     52:    }
     53: }
* Tulpe 参数 :字符串**数组**。
* 第 7 行 :调用 `#validateMin(...)` 方法,校验参数数量至少为 `1` ,字符串数组**非空**。
* 第 10 至 15 行 :使用 **SubnetUtils** 工具类,解析配置的值。
* 第 21 至 25 行 :获得请求来源 IP 。
* 第 28 至 32 行 :请求**来源 IP** 在**指定范围内**。
赞(0) 打赏

如未加特殊说明,此网站文章均为原创,转载必须注明出处。Java 技术驿站 » Spring-Cloud-Gateway 源码解析 —— 处理器 (3.1) 之 RoutePredicateFactory 路由谓语工厂
分享到: 更多 (0)

评论 抢沙发

  • 昵称 (必填)
  • 邮箱 (必填)
  • 网址

关注【Java 技术驿站】公众号,每天早上 8:10 为你推送一篇技术文章

扫描二维码关注我!


关注【Java 技术驿站】公众号 回复 “VIP”,获取 VIP 地址永久关闭弹出窗口

免费获取资源

觉得文章有用就打赏一下文章作者

支付宝扫一扫打赏

微信扫一扫打赏
